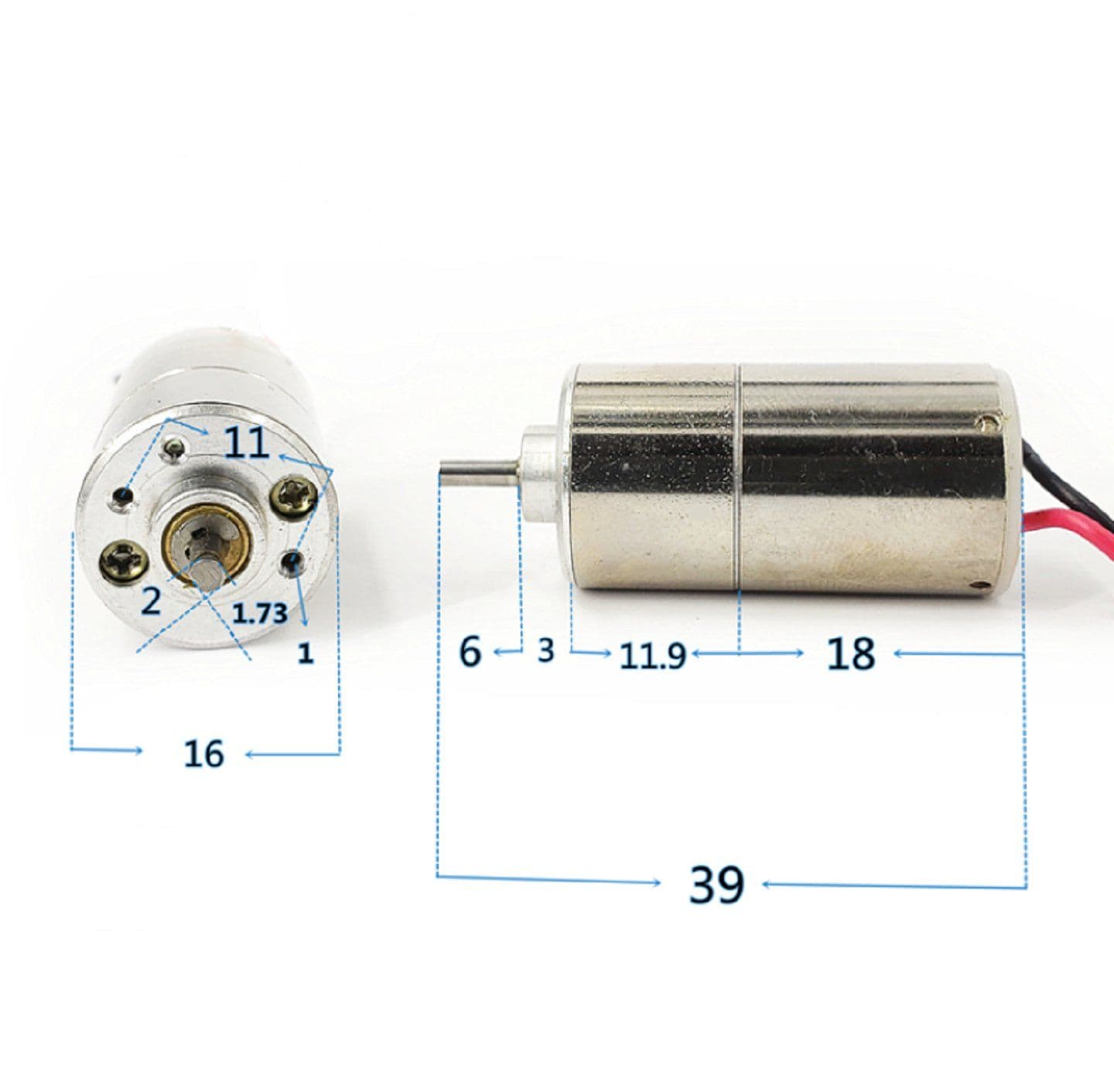

Description : Motor size: length 18mm, width 16mm Reduction gear diameter: 16mm Height of reduction gear box: 11.9mm Step diameter: 7mm Step height: 9mm Out shaft length: 6mm Motor shaft diameter: 2mm (flat shaft position diameter is 1.73mm) Fixed Aperture: 1mm Fixed hole distance] about 11mm Voltage range: 1.5-6V Motor parameters: When the power is 3V, the current is 11mA, about 49 rpm When power is 6V, the current is 15mA, about 98 rpm

DC3V-6V Precision Coreless Gear Motor

Product details
