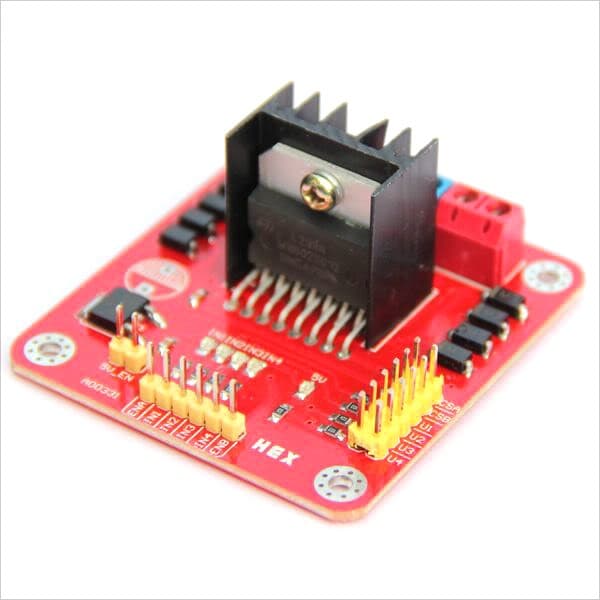

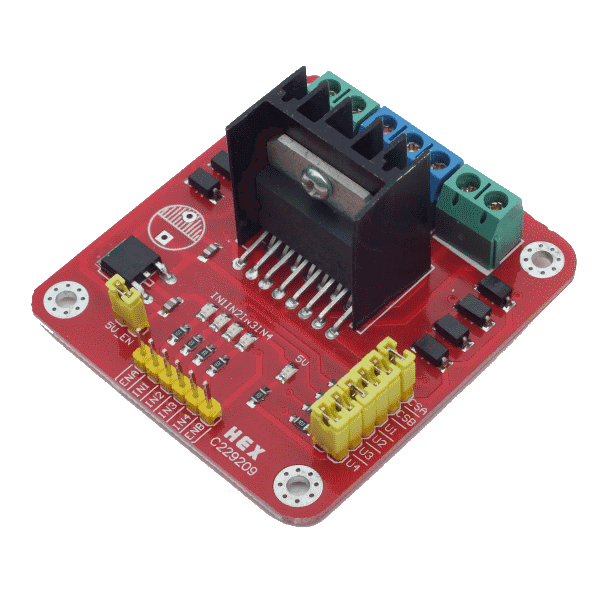

L298N Dual H Bridge DC Stepper Motor Driver Board

L298N Dual H-Bridge Stepper Motor Driver Controller Module Board For Arduino Description: Uses ST L298N chip, can directly drive two 3V - 30V DC motor, and provide a 5V output interface, power for 5V single chip circuitry, support 3.3V MCU control. Can easily control the DC motor speed and direction, also control the 2 phase stepper motor. Specification: Driver chip: L298N Dual H Bridge DC Motor Driver IC Driven part of the terminal supply voltage: VMS 5V ~ 35V Driven part of the peak current IO: 2A per bridge The logical part of the terminal supply voltage: VSS 4.5V ~ 5.5V The logical part of the operating current range: 0mA ~ 36mA Control signal input voltage range: 4.5V ~ 5.5V (high) / 0V (low) Max power consumption: 20W Operating temperature: -25°C ~ +130°C Size: 55 x 60 x 30mm
