Technical Specifications: 1.Logical part ofthe input voltageVD: 5V 2.Drivenpart of the inputvoltageVS: VINInput6.5 ~ 12V, PWRIN4.8 ~ 35Vinput 3.Logicalpart of the workcurrentIss: <36mA 4.Drivenpart of theoperating currentIo: <2A 5.Maximum power dissipation: 25W (T = 75Celsius) 6.Controlsignalinput level:High2.3Vlow-0.3V 7.Working temperature: -25 + 130Celsius 8.Hardware interface: 5.0mmpitchterminal 9beltclipandcan be controlledviafront rowaccesssignal 10.Drive Type:DualpowerH-bridge driver 11Pinoccupancy: D4 ~ D7directdrive motor 12supportsPWM / PLLmodemotor speedcontrol

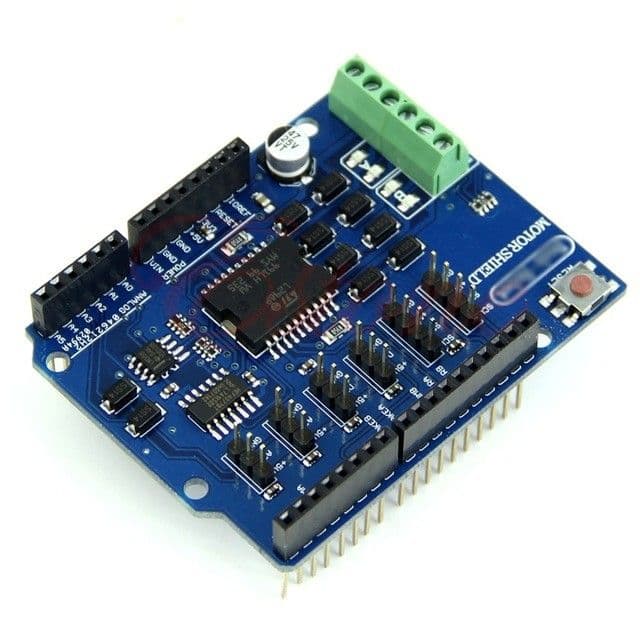

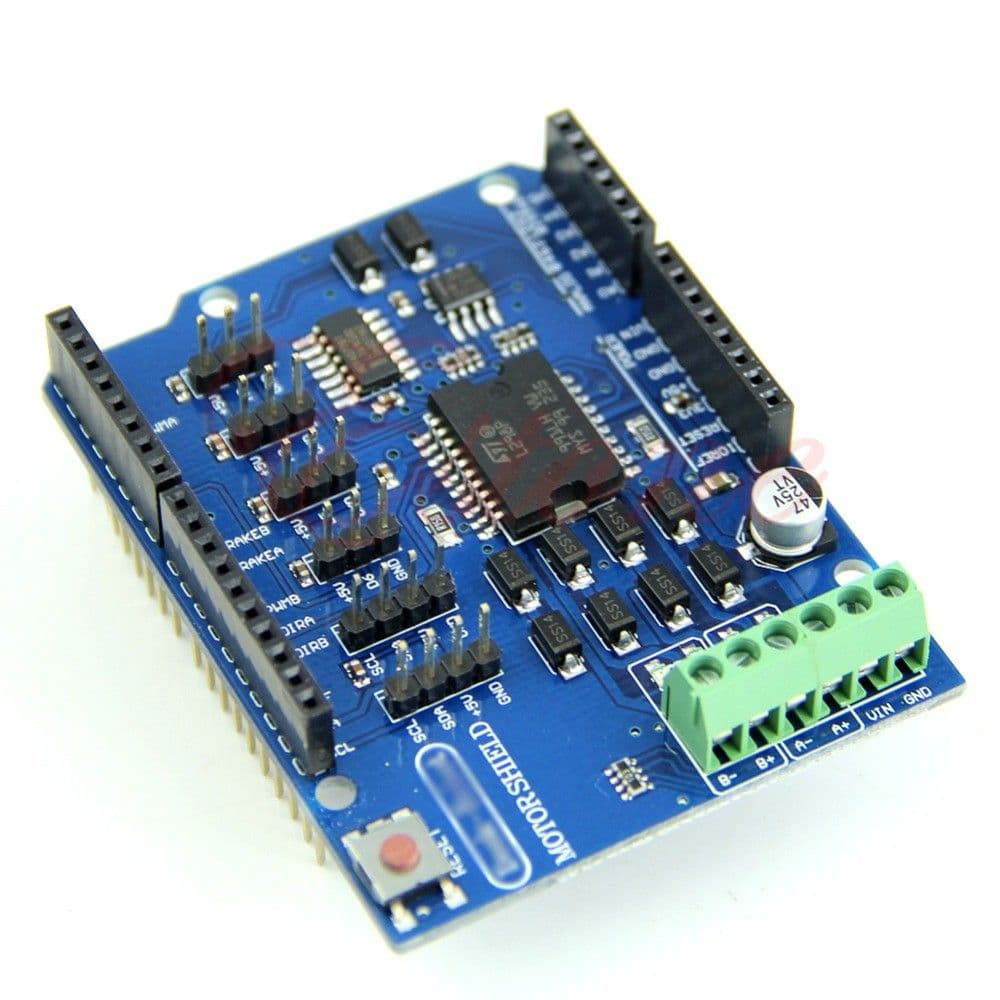

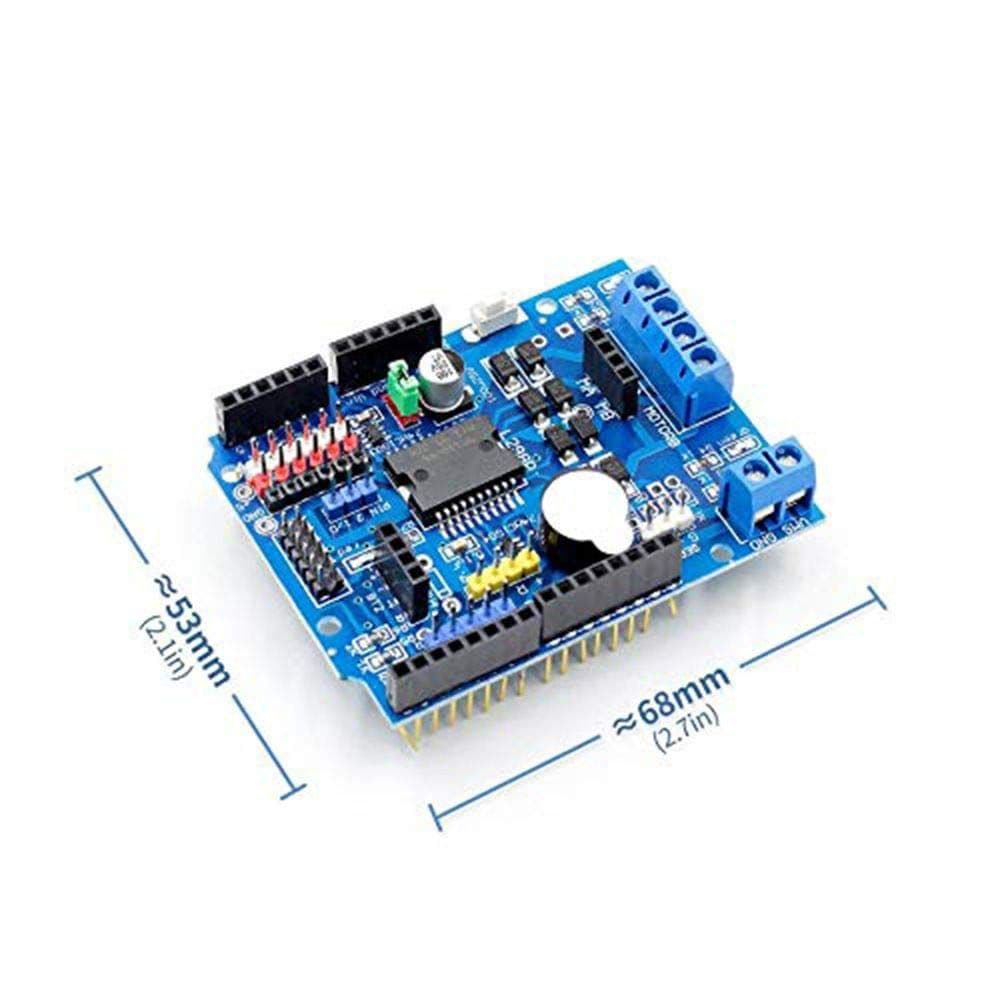

L298P PWM Speed Controller

Product details
