UT691-10 Fiber Optical Visual Fault Locator UNI-TREND

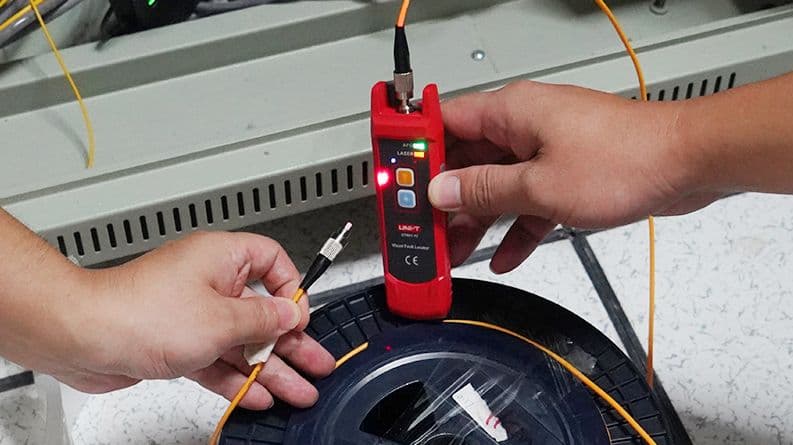

UT691 visual fault locator is designed for optical fiber fault detection and locating, end to endoptical fiber identification and more. It is IP54 rated, uses 650nm visible redlight with 2emitting modes of continuous or pulse. With the functions of APO, battery statusindicator and flashlight, it can be widely used in the fields of optical cable constructionand maintenance, optical fiber communication or sensing, optical CATV and so on. Features Specifications Model UT691-10 Laser output power ≥10mW Optical fiber length range 8~10km Wavelength of redight 650±10nm Optical fiber adapter 2.5mm FC general connector Battery type 3.7V 1050mAh polymer lithium battery Battery life ＞7h Battery status display The battery status will be shown by 4 blue LED (not in flashlight) Green indicator Indicates auto power off state which LED will flash white light for 3 times Laser mode Continuous mode/Pulse mode Charge voltage and current DC 5V, < 1A APO 15min auto power off (manual adjustable) Warning symbol √ Warning √ Key press test ＞5000 times Drop test 1m General Characteristics Power 1050mAh rechargeable battery Product color Red and grey Product net weight 62g Product size 130mm x 38mm x 27mm Standard individual packing Gift box, English manual Standard quantity per carton 20pcs Standard carton measurement 285mm x 245mm x 155mm Standard carton gross weight About 2.8kg
