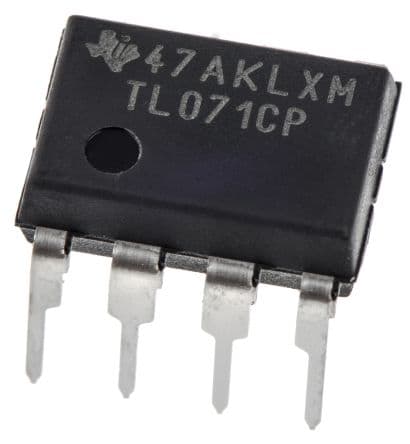

TL071 Operational Amplifier

Product detail Operational amplifiers with JFET input, families TL070 and TL080 A line of well-known Texas Instruments high-output bipolar output and JFET inputs with low input bias currents and high scan rates. These op-amps have reduced noise and low distortion and are suitable for a wide variety of audio and signal processing applications. The high input impedance makes these op-amps an ideal choice when circuit load needs to be reduced. Offset adjustment and external compensation options are available with TL071 and TL081 single circuits. • Low bias input and offset current • Wide range of supply voltages: ± 5 to ± 15 V • Low noise: 18 nV / √Hz typical at 1 kHz • High scanning speed: 13 V / μs typical • Low total harmonic distortion: 0.003% typical • Single, double and quad circuits available Technical characteristics attribute Value Mounting Type Through Hole PDIP Case Style Power type : Double Number of channels per circuit : 1 Number of pins : 8 Product gain typical band : 3MHz Typical symmetrical power supply voltage : ± 12 V, ± 15 V, ± 5 V, ± 9 V Typical Slew Rate 13V / μs Maximum operating temperature : +70 ° C Minimum operating temperature : ° C Dimensions : 9.81 x 6.35 x 4.57mm Typical input voltage / noise density : 18nV / √Hz width : 6.35mm Rail Rail : No Height : 4.57mm Typical voltage gain : 106 dB length : 9.81mm
