ESP32-C3 (RISC-V) Wireless Module Development Circuits
The ESP32-C3 is a wireless microcontroller (MCU) based on the RISC-V architecture, offering both Wi-Fi and Bluetooth LE (Low Energy) connectivity.
This module is widely used in the Internet of Things (IoT) space due to its low power consumption, high performance, and cost-effectiveness.
It is ideal for wireless applications with moderate computational requirements.
Key Features of the ESP32-C3:
32-bit RISC-V Processor running at up to 160 MHz.
Wireless Connectivity: Wi-Fi (802.11 b/g/n) and Bluetooth Low Energy (BLE 5.0).
Memory: 400 KB of SRAM and up to 4 MB of flash.
Security: Hardware support for cryptography, such as AES, RSA, and SHA.
Power Efficiency: Optimized power management modes for low energy consumption.
GPIOs: Multiple digital I/Os, PWM, ADC, I2C, SPI, UART, etc.

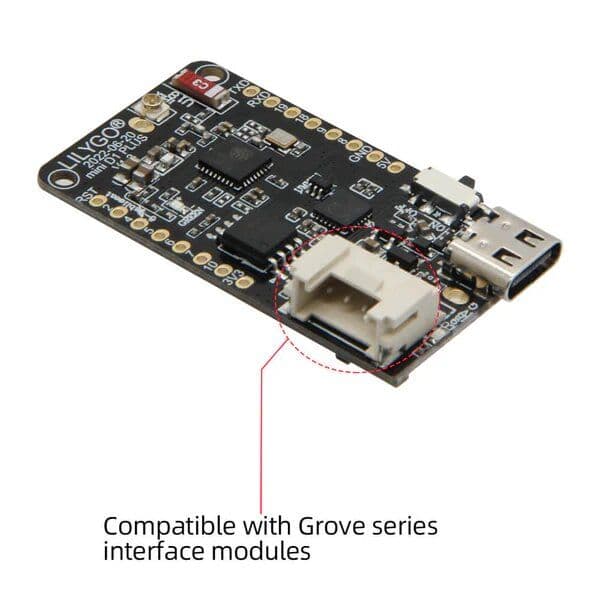

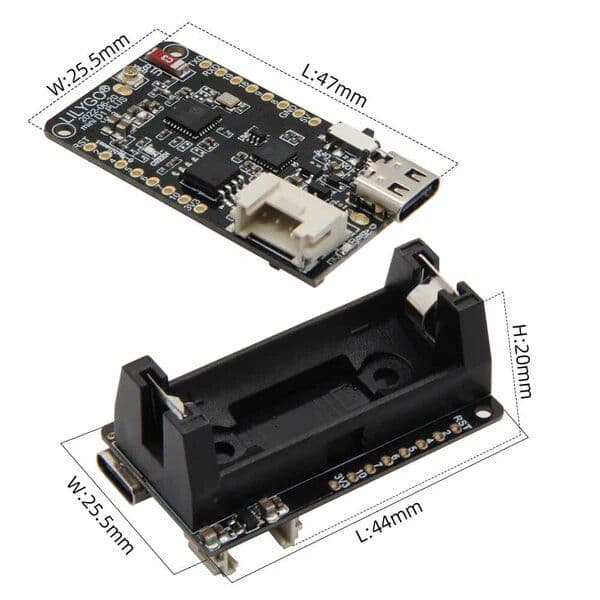

Development Circuits for the ESP32-C3
1. Connecting the ESP32-C3 to a Computer (Programming)
To program the ESP32-C3, you'll need to connect it to a computer via a USB-to-UART adapter. Here's a basic schematic for programming the ESP32-C3:
Required Components:
ESP32-C3 module
USB-to-UART adapter (if the ESP32-C3 module doesn't have a built-in USB port)
Programming software (such as Arduino IDE or PlatformIO)
Wiring Connections:
TX (from ESP32-C3) to RX (on USB-to-UART adapter)
RX (from ESP32-C3) to TX (on USB-to-UART adapter)
GND (from ESP32-C3) to GND (on USB-to-UART adapter)
3V3 (from ESP32-C3) to 3.3V (on USB-to-UART adapter)
Note: Ensure that your ESP32-C3 is compatible with the 3.3V supply voltage (most ESP32-C3 modules use 3.3V).
2. Circuit for Wi-Fi and Bluetooth Connection
One of the strengths of the ESP32-C3 is its built-in Wi-Fi and Bluetooth connectivity. The module usually comes with an integrated antenna, but if you need more range, you can connect an external antenna.
Required Components:
ESP32-C3 module
External antenna (optional)
Example Project: Control devices via Wi-Fi (e.g., turning an LED or motor on and off) using the built-in web server feature. You can easily set up a webpage to control a device remotely.

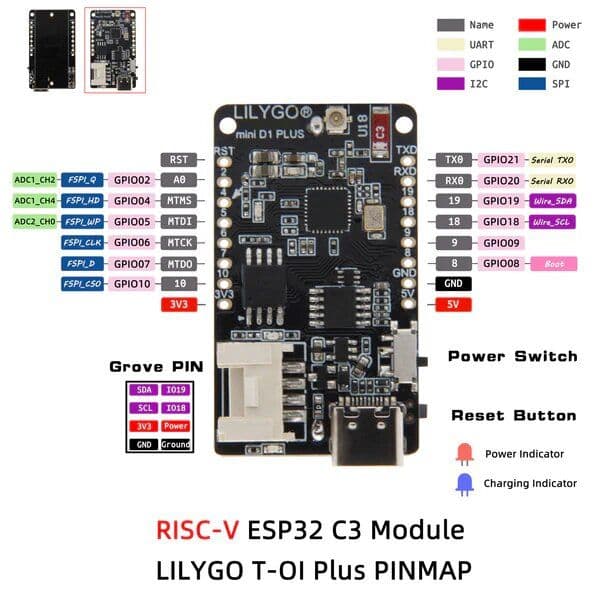

3. GPIO Input/Output Circuit
The ESP32-C3 has many GPIO pins that you can use to connect various peripherals, such as sensors, motors, or displays.
Example: Using a temperature and humidity sensor (such as DHT11/DHT22) with the ESP32-C3 to send data to a web server or mobile app via Wi-Fi.
Wiring Connections:
GPIO of ESP32-C3 to Data pin of the sensor (e.g., DHT11)
VCC to 3.3V
GND to GND
Example Code (Arduino IDE) for a Web Server on ESP32-C3
Here’s a simple example that shows how to use the ESP32-C3 to create a web server that allows you to control an LED via an HTML page.
#include
const char *ssid = "your_SSID";
const char *password = "your_password";
WiFiServer server(80);
const int ledPin = 2; // GPIO pin for the LED
void setup() {
Serial.begin(115200);
pinMode(ledPin, OUTPUT);
// Connect to Wi-Fi network
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED) {
delay(1000);
Serial.println("Connecting to Wi-Fi...");
}
Serial.println("Connected to Wi-Fi!");
// Start the server
server.begin();
}
void loop() {
WiFiClient client = server.available();
if (client) {
String request = client.readStringUntil('\r');
Serial.println(request);
client.flush();
// Control the LED based on the request
if (request.indexOf("/LED=ON") != -1) {
digitalWrite(ledPin, HIGH);
} else if (request.indexOf("/LED=OFF") != -1) {
digitalWrite(ledPin, LOW);
}
// HTML response for controlling the LED
String html = "LED Control
Turn LED ON
Turn LED OFF
Code Explanation:
The code connects to a Wi-Fi network.
A server is started on port 80.
It provides a simple HTML page with links to turn the LED on or off connected to GPIO pin 2.
Conclusion
The ESP32-C3 is an excellent choice for IoT projects, thanks to its powerful features, low energy consumption, and RISC-V architecture.
You can easily integrate it into development circuits for a variety of wireless applications, whether it's for sensor data collection, remote control, or connected devices.
