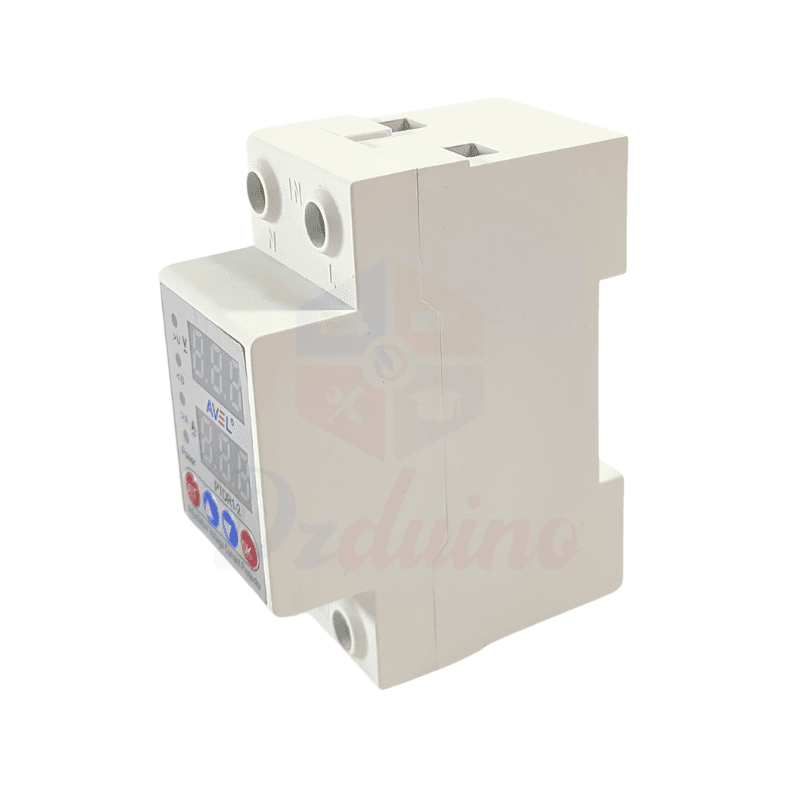

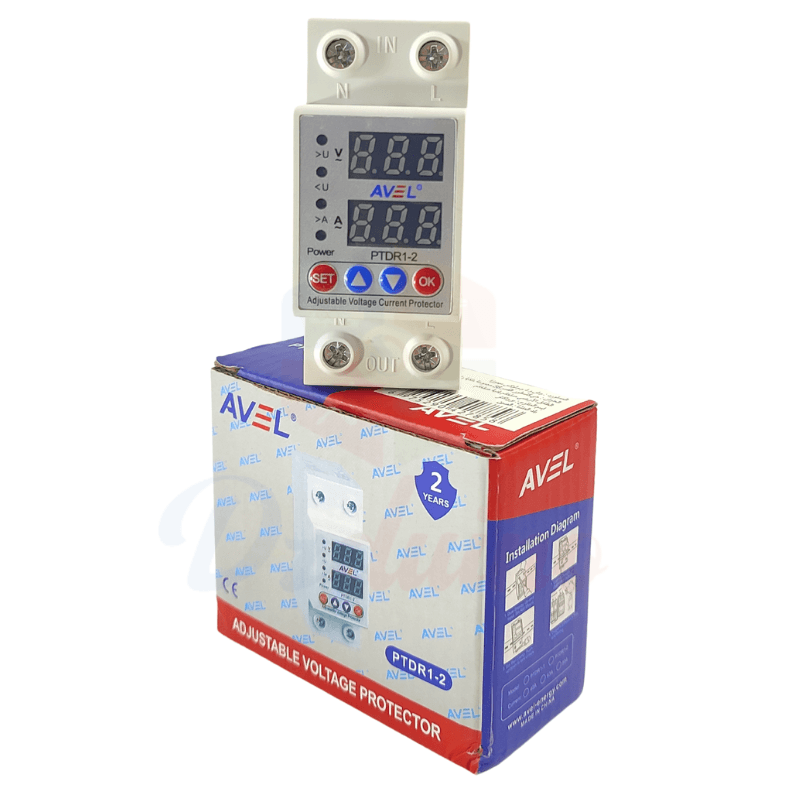

63A Adjustable Current and Voltage Protection Device AVELE AV-PTDR-1-2

Functions: 1. Over voltage protection 2. Under voltage protection 3. Over current protection 4. Automatic recovery 5. Voltage display (voltage measurement) 6. Current display (current measurement) 7. Voltage calibration: voltage +-10% adjustable. A13 8. Restore factory settings: press the DOWN button for more than 12s 9. Fault inquiry: press the UP button for more than 12S Product parameters: 1. Model number: TOVPD1-60-EC 2. Power supply: 230VAC 50/60Hz 3.Max. Loading power: 1~40A adjustable (default: 40A) 1~63A adjustable (default: 63A) 4. Overvoltage protection value range: 230V~300~OFF (default: 270V) Overvoltage recovery voltage range: 225V--295V (default: 250V) Overvoltage protection action time: 0.1s~30s (default: 0.5s) Overvoltage recovery delay time: 1s~500s (default: 30s) 5. Undervoltage protection value range: 140V-210V-OFF ​​(default: 170V) Undervoltage recovery voltage range: 145V--215V (default: 190V) Undervoltage protection action time: 0.1s~30s (default: 0.5s) Undervoltage R Ecovery delay time: 1s~500s (default: 30s) 6. Over-current adjustment range: 1-40A (default: 20A) 1-63A (default: 40A) Over-current action range: 0.1~30 second (default: 0.5s) Over-current R Ecovery delay time: 1s~500s (default: 30s) 7.Power-on delay time: 1s~500s (default: 10s) 9. Power consumption: <2W 10. Electrical machinery life: 100,000 times 11.Installation: 35mm DIN rail
